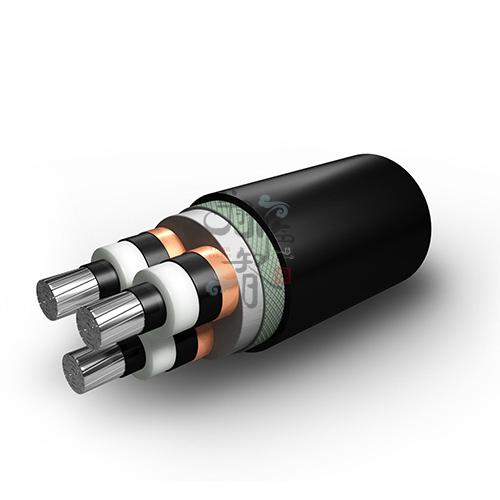

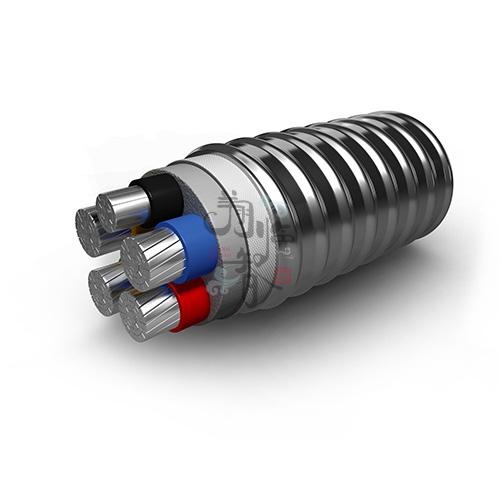

Aluminum alloy core cross-linked polyethylene insulated power cable
Product Name: Aluminum Alloy Core Cross linked Polyethylene Insulated Power Cable
Voltage level: 0.6/1kV~26/35kV
Execution standards: GB/T 31840.2015
Product Introduction: The product is suitable for low, medium, and high voltage transmission and distribution systems with rated voltages ranging from 0.6/1 to 26/35kV. The maximum long-term allowable working temperature of the cable conductor is 90 ℃, and the maximum temperature of the cable during short circuit is 250 ℃ (with a maximum duration of 5 seconds); The minimum working temperature of the cable is -45 ℃. Realize the effect of "saving copper with aluminum".
name | Execution standards | model | Voltage level | Specifications |
Low voltage aluminum alloy cable | GB/T 31840.1-2015 | VLHV、VLHY、VLHV22、VLHV23、VLHV32、VLHV33、VLHVS、VLHVS2、VLHVS3、YJLHV、YJLHY、YJLHV22、YJLHV23、YJLHV32、YJLHV33、YJLHVS、YJLHVS2、YJLHVS3 | 0.6/1kV～3/3kV | 1*10～1*800、2*10～2*400、3*10～3*400、4*10～4*400、5*10～5*400、3*10+1*6～3*400+1*185、3*10+2*6～3*400+2*185、4*10+1*6～4*400+1*185 |
Medium voltage aluminum alloy cable | GB/T 31840.2-2015 | VLHV、VLHY、VLHV22、VLHV23、VLHV32、VLHV33、VLHVS、VLHVS2、VLHVS3、YJLHV、YJLHY、YJLHV22、YJLHV23、YJLHV32、YJLHV33、YJLHVS、YJLHVS2、YJLHVS3 | 3.6/6kV～8.7/15kV | 1*25～1*1000、3*25～3*500 |
VLHV、VLHY、VLHV22、VLHV23、VLHV32、VLHV33、VLHVS、VLHVS2、VLHVS3、YJLHV、YJLHY、YJLHV22、YJLHV23、YJLHV32、YJLHV33、YJLHVS、YJLHVS2、YJLHVS3 | 12/20kV | 1*35～1*1000、3*35～3*500 | ||
VLHV、VLHY、VLHV22、VLHV23、VLHV32、VLHV33、VLHVS、VLHVS2、VLHVS3、YJLHV、YJLHY、YJLHV22、YJLHV23、YJLHV32、YJLHV33、YJLHVS、YJLHVS2、YJLHVS3 | 18/30kV | 1*50～1*1000、3*50～3*500 | ||
GB/T 31840.3-2015 | YJLHV、YJLHY、YJLHV22、YJLHV23、YJLHV32、YJLHV33、、YJLHV42、YJLHV43 | 21/35kV～26/35kV | 1*50～1*1000、3*50～3*500 |
